Falseworks essentially consist of prefabricated frames with horizontal beams and diagonals of a modular scaffold. The frames are mutually tensile-tight connected with bolts or pins. The Falsework usually starts with a 71cm frame and optionally ends with a maximum of two 50cm frames. In between, usually 100cm frames are installed. Intermediate heights are built by adjusting the head- and base-spindles with a maximum travel of 26cm (head) and 39cm (base). The possible ground dimensions of the falsework are B = 1.088m and L=1,088 / 1,527 / 2,072 / 2,572 / 3,072m.
Type statics of the falsework up to a frame-height of 16,709m. Falseworks with and without lateral support at the head-spindles for the use in rooms or outside considering wind with a velocity pressure of qw≤1,1kN/m2 have been verified.

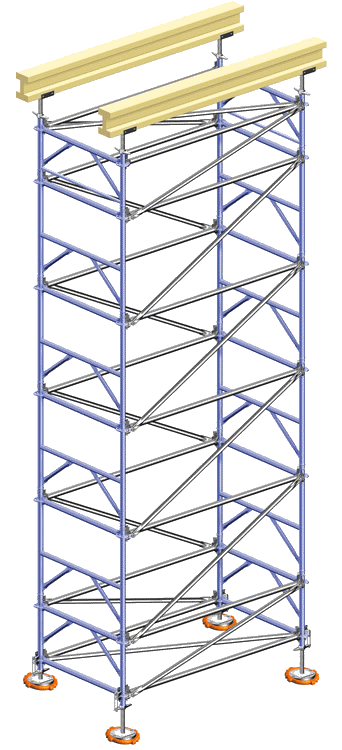

Isometry |
FE-Elementsystematics |
Layout |
